Özellikler
Proven durable construction design, overall frame work adopts full steel structure, high strength, can meet the needs of high strength work.
Body hinger, using polymer composite bushing,hardness is twice as general copper sleeve!fully extended busing life!Because of its self-lubricating fuction without regular filling grease can avoids rapid wear of the lining sleeve for the pin shaft fracture failure.
Good field of vision, safe and reliable.
Videolar
Şartname
Capacity @ Load Center (kg @ mm) | model | Carriage Width (mm) | Truck Mounting Class | Hinged Forks Mounting Class | Overall Height (mm) | Tilt Forward / Tilt Backward | Weight (kg) | Etkili Kalınlık (mm) | Yatay Ağırlık Merkezi (mm) |
2000 @ 500 | HFB20D-001A | 1040 | II | II | 955 | 45° / 25° | 320 | 310 | 132 |
2500 @ 500 | HFB25D-002A | 1040 | II | II | 955 | 45° / 25° | 320 | 390 | 132 |
3000 @ 500 | HFB30D-003A | 1100 | III | III | 968 | 45° / 25° | 335 | 325 | 132 |
3500 @ 500 | HFB35D-002B | 1100 | III | III | 1175 | 45° / 25° | 400 | 383 | 132 |
4000 @ 500 | HFB40D-003B | 1100 | III | III | 1388 | 45° / 25° | 480 | 395 | 195 |
4500 @ 500 | HFB45D-004B | 1450 | III | III | 1388 | 45° / 25° | 800 | 425 | 195 |
Not
Forkliftin asıl kapasitesini ve ek parçalarını forklift üreticisinden temin etmek,
One/Two sets additional oil circuit required on forklift
Can be customized according to customer requirements of various width.
Lütfen HUAMAI satışlarından irtibata geçin.
model | Min. Hidrolik Akış (L / dak) | Rec. Hidrolik Akış (L / dak) | Hidrolik Akış (L / dak) | Rec. Hidrolik Basınç (Bar) |
HFB | 19 | 38 | 57 | 35 |
seçenek
çatallar
Kova
Yük arkalığını arttırın
Uygulama

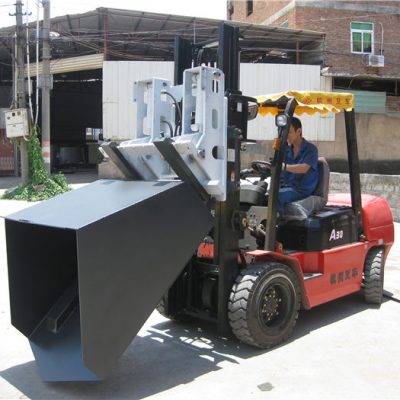

Hinged forks are safe and efficient to dump bulk cargo container ; Configurated with bucket to shovel all loosen goods such as sand, coal, grain, fertilizer, sod and the blocks, ect.
Hızlı Ayrıntılar
Menşe Yeri: Çin (Anakara)
Marka Adı: HUAMAI
Model Number: HFB20D-001A
Product Name: Hinged fork forklift
Type: HFB20D-001A
Montaj sınıfı: II
Carriage Width (mm): 1040mm
Overall Height (mm): 955mm
Tilt Forward / Tilt Backward: 45° / 25°
Weight (kg): 320kg
Effective Thickness (mm): 310mm
Horizontal Center of Gravity (mm): 132mm
Hinged Forks Mounting Class: II
