Kepçe ile 3 ton Forklift, hidrolik kepçe

Ev / Tüm Ekler / Kepçe ile 3 ton Forklift, hidrolik kepçe

Kepçe ile 3 ton Forklift, hidrolik kepçe

Özellikler


3 ton forklift with bucket , diesel forklift
automatic transmission,
power steering,with 3 meters
duple mast

Videolar


tip

Dış busket boyutu (mm)

Maks. Çatal boyutu (mm)

Çatal mesafesi (mm)

Birim Ağırlık (kg)

Kapasite (kg)

Hacim (m 3)

Busket Plakası Kalınlığı (mm)

DBHS-12

1100*570*1200

180*65

700

306.0

1000

0.50

5

DBHS-14

1100*570*1400

180*65

700

348.0

1000

0.55

6

DBHS-16

1100*570*1600

180*65

700

366.0

1000

0.65

6

DBHS-18

1100*570*1800

180*65

700

384.0

1000

0.75

6

DBHS-20

1100*570*2000

180*65

700

402.0

1000

0.80

6

Hızlı Ayrıntılar


Durum: Yeni
Menşe Yeri: Çin (Anakara)
Marka Adı: HUAMAI
Model Numarası: HUAMAI30
Tür: Elektrikli Transpalet
Güç Kaynağı: Dizel Motor
Anma Yükleme Kapasitesi: 3000kg
Maks. Kaldırma Yüksekliği: 3000mm
Min. Kaldırma Yüksekliği: 120mm
Çatal Uzunluğu: 1070mm
Çatal Genişliği: 125mm
Overall Dimensions: 3740x1225x2090mm
Belgelendirme: ISO9001
color: white
diesel forklift: 3 ton forklift with bucket , diese


Introduction]

CNB hydraulic buckets are designed to handling sands, stone, pebble, dirt, waste and so on. It can be easily installed on your forklift then help you operate the cargo conveniently and rapidly.

Özellikler:

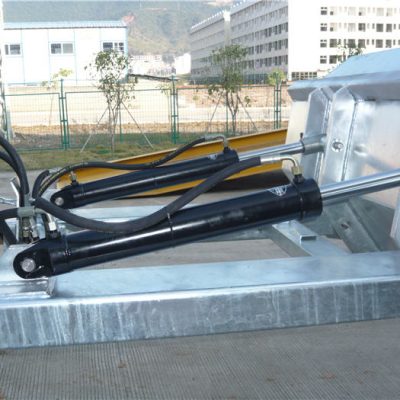

* Realizing both forward and backward tipping through hydraulic cylinder.

* Dumped via a simple mechanical lever.

* A blade made of wear-resistant material is welded in the front of the bucket.

* Surface treatment:painted or galvanized finish.

[Şartname]

TürleriOuter bucket dimension   (mm)Max. Fork Size   (mm)Çatal mesafesi (mm)Birim Ağırlık (kg)Kapasite (kg)Volume       (m³)Bucket Plate Thickness(mm)
DBHS-121100x570x1200180x65700306.010000.505
DBHS-141100x570x1400180x65700348.010000.556
DBHS-161100x570x1600180x65700366.010000.656
DBHS-181100x570x1800180x65700384.010000.756
DBHS-201100x570x2000180x65700402.010000.806
